The operator-split thermal-structural solver. More...

#include <thermomechanics.hpp>

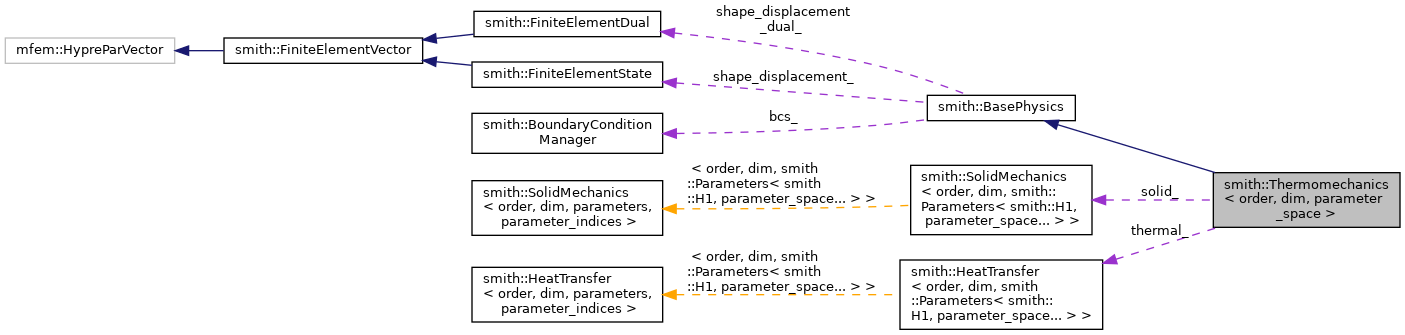

Collaboration diagram for smith::Thermomechanics< order, dim, parameter_space >:

[legend]

Classes
struct	MechanicalMaterialInterface
	This is an adaptor class that makes a thermomechanical material usable by the solid mechanics module, by discarding the thermal-specific information. More...

struct	ThermalMaterialInterface
	This is an adaptor class that makes a thermomechanical material usable by the thermal module, by discarding the solid-mechanics-specific information. More...

Public Member Functions
	Thermomechanics (const NonlinearSolverOptions thermal_nonlin_opts, const LinearSolverOptions thermal_lin_opts, TimesteppingOptions thermal_timestepping, const NonlinearSolverOptions solid_nonlin_opts, const LinearSolverOptions solid_lin_opts, TimesteppingOptions solid_timestepping, const std::string &physics_name, std::shared_ptr< smith::Mesh > smith_mesh, int cycle=0, double time=0.0)
	Construct a new coupled Thermal-SolidMechanics object. More...

	Thermomechanics (std::unique_ptr< EquationSolver > thermal_solver, TimesteppingOptions thermal_timestepping, std::unique_ptr< EquationSolver > solid_solver, TimesteppingOptions solid_timestepping, const std::string &physics_name, std::shared_ptr< smith::Mesh > smith_mesh, int cycle=0, double time=0.0)
	Construct a new coupled Thermal-SolidMechanics object. More...

	Thermomechanics (const HeatTransferInputOptions &thermal_options, const SolidMechanicsInputOptions &solid_options, const std::string &physics_name, std::string mesh_tag, int cycle=0, double time=0.0)
	Construct a new Thermal-SolidMechanics Functional object from input file options. More...

	Thermomechanics (const ThermomechanicsInputOptions &options, const std::string &physics_name, std::string mesh_tag, int cycle=0, double time=0.0)
	Construct a new Thermal-SolidMechanics Functional object from input file options. More...

void	completeSetup () override
	Complete the initialization and allocation of the data structures. More...

void	resetStates (int cycle=0, double time=0.0) override
	Method to reset physics states to zero. This does not reset design parameters or shape. More...

const FiniteElementState &	state (const std::string &state_name) const override
	Accessor for getting named finite element state primal fields from the physics modules. More...

void	setState (const std::string &state_name, const FiniteElementState &state) override
	Set the primal solution field (displacement, velocity, temperature) for the underlying thermomechanics solver. More...

virtual std::vector< std::string >	stateNames () const override
	Get a vector of the finite element state solution variable names. More...

const FiniteElementState &	adjoint (const std::string &state_name) const override
	Accessor for getting named finite element adjoint fields from the physics modules. More...

void	advanceTimestep (double dt) override
	Advance the timestep. More...

template<typename T >
std::shared_ptr< QuadratureData< T > >	createQuadratureDataBuffer (T initial_state)
	Create a shared ptr to a quadrature data buffer for the given material type. More...

template<int... active_parameters, typename MaterialType , typename StateType >
void	setMaterial (DependsOn< active_parameters... >, const MaterialType &material, Domain &domain, std::shared_ptr< QuadratureData< StateType >> qdata)
	Set the thermomechanical material response. More...

template<typename MaterialType , typename StateType = Empty>
void	setMaterial (const MaterialType &material, Domain &domain, std::shared_ptr< QuadratureData< StateType >> qdata=EmptyQData)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

void	setTemperatureBCs (const std::set< int > &temperature_attributes, std::function< double(const mfem::Vector &x, double t)> prescribed_value)
	Set essential temperature boundary conditions (strongly enforced) More...

template<typename AppliedDisplacementFunction >
void	setDisplacementBCs (AppliedDisplacementFunction applied_displacement, Domain &domain, Components components=Component::ALL)
	Set essential displacement boundary conditions on selected components. More...

void	setFixedBCs (Domain &domain, Components components=Component::ALL)
	Shortcut to set selected components of displacements to zero for all time. More...

template<typename FluxType >
void	setHeatFluxBCs (FluxType flux_function)
	Set the thermal flux boundary condition. More...

template<typename Callable >
void	setDisplacement (Callable displacement)
	Set the underlying finite element state to a prescribed displacement. More...

void	setTemperature (std::function< double(const mfem::Vector &x, double t)> temperature)
	Set the underlying finite element state to a prescribed temperature. More...

template<typename BodyForceType >
void	addBodyForce (BodyForceType body_force_function)
	Set the body forcefunction. More...

template<typename HeatSourceType >
void	addHeatSource (HeatSourceType source_function)
	Set the thermal source function. More...

const smith::FiniteElementState &	displacement () const
	Get the displacement state. More...

const smith::FiniteElementState &	temperature () const
	Get the temperature state. More...

Public Member Functions inherited from smith::BasePhysics
	BasePhysics (std::string physics_name, std::shared_ptr< smith::Mesh > mesh, int cycle=0, double time=0.0, bool checkpoint_to_disk=false)
	Empty constructor. More...

	BasePhysics (BasePhysics &&other)=default
	Construct a new Base Physics object (copy constructor) More...

virtual double	time () const
	Get the current forward-solution time. More...

virtual int	cycle () const
	Get the current forward-solution cycle iteration number. More...

virtual double	maxTime () const
	Get the maximum time reached by the forward solver. More...

virtual double	minTime () const
	Get the initial time used by the forward solver. More...

virtual int	maxCycle () const
	The maximum cycle (timestep iteration number) reached by the forward solver. More...

virtual int	minCycle () const
	Get the initial cycle (timestep iteration number) used by the forward solver. More...

bool	isQuasistatic () const
	Check if the physics is setup as quasistatic. More...

virtual const std::vector< double > &	timesteps () const
	Get a vector of the timestep sizes (i.e. \(\Delta t\)s) taken by the forward solver. More...

virtual void	resetAdjointStates ()
	Base method to reset physics states back to the end of time to start adjoint calculations again. This does not reset design parameters or shape.

virtual std::vector< std::string >	adjointNames () const
	Get a vector of the finite element state adjoint solution names. More...

virtual std::vector< std::string >	dualNames () const
	Get a vector of the finite element state dual (reaction) solution names. More...

virtual const FiniteElementDual &	dual (const std::string &dual_name) const
	Accessor for getting named finite element state dual (reaction) solution from the physics modules. More...

virtual const FiniteElementState &	dualAdjoint (const std::string &dual_name) const
	Accessor for getting named finite element state dual adjoint (reaction adjoint load) from the physics modules. More...

virtual const FiniteElementState &	shapeDisplacement () const
	Accessor for getting the shape displacement field from the physics modules. More...

virtual const FiniteElementState &	parameter (const std::string &parameter_name) const
	Accessor for getting named finite element state parameter fields from the physics modules. More...

virtual const FiniteElementState &	parameter (std::size_t parameter_index) const
	Accessor for getting indexed finite element state parameter fields from the physics modules. More...

virtual std::vector< std::string >	parameterNames () const
	Get a vector of the finite element state parameter names. More...

virtual void	setParameter (const size_t parameter_index, const FiniteElementState &parameter_state)
	Deep copy a parameter field into the internally-owned parameter used for simulations. More...

virtual void	setShapeDisplacement (const FiniteElementState &shape_displacement)
	Set the current shape displacement for the underlying mesh. More...

virtual FiniteElementDual	computeTimestepSensitivity (size_t parameter_index)
	Compute the implicit sensitivity of the quantity of interest used in defining the adjoint load with respect to the parameter field (d QOI/d state * d state/d parameter). More...

virtual const FiniteElementDual &	computeTimestepShapeSensitivity ()
	Compute the implicit sensitivity of the quantity of interest used in defining the adjoint load with respect to the shape displacement field (d QOI/d state * d state/d shape displacement). More...

virtual const std::unordered_map< std::string, const smith::FiniteElementDual & >	computeInitialConditionSensitivity () const
	Compute the implicit sensitivity of the quantity of interest with respect to the initial condition fields. More...

virtual void	setAdjointLoad (std::unordered_map< std::string, const smith::FiniteElementDual & > string_to_dual)
	Set the loads for the adjoint reverse timestep solve. More...

virtual void	setDualAdjointBcs (std::unordered_map< std::string, const smith::FiniteElementState & > string_to_bc)
	Set the dual loads (dirichlet values) for the adjoint reverse timestep solve This must be called after setAdjointLoad. More...

virtual void	reverseAdjointTimestep ()
	Solve the adjoint reverse timestep problem. More...

virtual void	outputStateToDisk (std::optional< std::string > paraview_output_dir={}) const
	Output the current state of the PDE fields in Sidre format and optionally in Paraview format if `paraview_output_dir` is given. More...

void	loadCheckpointedStatesFromDisk (int cycle)
	load checkpointed states from disk into states array More...

virtual FiniteElementState	loadCheckpointedState (const std::string &state_name, int cycle)
	Accessor for getting a single named finite element state primal solution from the physics modules at a given checkpointed cycle index. More...

virtual FiniteElementDual	loadCheckpointedDual ([[maybe_unused]] const std::string &state_name, [[maybe_unused]] int cycle)
	Accessor for getting a single named finite element dual solution from the physics modules at a given checkpointed cycle index. More...

virtual double	getCheckpointedTimestep (int cycle) const
	Get a timestep increment which has been previously checkpointed at the give cycle. More...

virtual void	initializeSummary (axom::sidre::DataStore &datastore, const double t_final, const double dt) const
	Initializes the Sidre structure for simulation summary data. More...

virtual void	saveSummary (axom::sidre::DataStore &datastore, const double t) const
	Saves the summary data to the Sidre Datastore. More...

virtual	~BasePhysics ()=default
	Destroy the Base Solver object.

const smith::Mesh &	mesh () const
	Returns a reference to the mesh object.

const mfem::ParMesh &	mfemParMesh () const
	Returns a reference to the mfem ParMesh object.

mfem::ParMesh &	mfemParMesh ()
	Returns a reference to the mfem ParMesh object.

std::string	name () const
	Return the name of the physics.

Protected Types
using	displacement_field = H1< order, dim >
	the function space for the displacement field

using	temperature_field = H1< order >
	the function space for the temperature field

Protected Attributes
HeatTransfer< order, dim, Parameters< displacement_field, parameter_space... > >	thermal_
	Submodule to compute the heat transfer physics.

SolidMechanics< order, dim, Parameters< temperature_field, parameter_space... > >	solid_
	Submodule to compute the mechanics.

Protected Attributes inherited from smith::BasePhysics
std::string	name_ = {}
	Name of the physics module.

std::shared_ptr< smith::Mesh >	mesh_
	The primary mesh.

MPI_Comm	comm_
	The MPI communicator.

std::vector< const smith::FiniteElementState * >	states_
	List of finite element primal states associated with this physics module.

std::vector< const smith::FiniteElementState * >	adjoints_
	List of finite element adjoint states associated with this physics module.

std::vector< const smith::FiniteElementDual * >	duals_
	List of finite element duals associated with this physics module.

std::vector< const smith::FiniteElementState * >	dual_adjoints_
	List of adjoint finite element duals associated with this physics module.

std::vector< ParameterInfo >	parameters_
	A vector of the parameters associated with this physics module.

std::unordered_map< std::string, std::vector< smith::FiniteElementState > >	checkpoint_states_
	A map containing optionally in-memory checkpointed primal states for transient adjoint solvers.

std::unordered_map< std::string, smith::FiniteElementState >	cached_checkpoint_states_
	A container relating a checkpointed cycle and the associated finite element state fields. More...

std::optional< int >	cached_checkpoint_cycle_
	An optional int for disk-based checkpointing containing the cycle number of the last retrieved checkpoint.

bool	is_quasistatic_ = true
	Whether the simulation is time-independent.

double	time_
	Current time for the forward pass.

double	dt_
	Current time step.

double	max_time_
	The maximum time reached for the forward solver.

double	min_time_
	The time the forward solver was initialized to.

std::vector< double >	timesteps_
	A vector of the timestep sizes (i.e. \(\Delta t\)) taken by the forward solver.

int	cycle_
	Current cycle (forward pass time iteration count)

int	max_cycle_
	The maximum cycle (forward pass iteration count) reached by the forward solver.

int	min_cycle_
	The cycle the forward solver was initialized to.

double	ode_time_point_
	The value of time at which the ODE solver wants to evaluate the residual.

int	mpi_rank_
	MPI rank.

int	mpi_size_
	MPI size.

std::unique_ptr< mfem::ParaViewDataCollection >	paraview_dc_
	DataCollection pointer for optional paraview output.

std::unordered_map< std::string, std::unique_ptr< mfem::ParGridFunction > >	paraview_dual_grid_functions_
	A optional map of the dual names and duals in grid function form for paraview output.

std::unique_ptr< mfem::ParGridFunction >	shape_sensitivity_grid_function_
	A optional view of the shape sensitivity in grid function form for paraview output.

smith::FiniteElementState	shape_displacement_
	The shape displacement field.

smith::FiniteElementDual	shape_displacement_dual_
	The shape displacement field sensitivity.

BoundaryConditionManager	bcs_
	Boundary condition manager instance.

bool	checkpoint_to_disk_
	A flag denoting whether to save the state to disk or memory as needed for dynamic adjoint solves.

Additional Inherited Members
Protected Member Functions inherited from smith::BasePhysics
const FiniteElementDual &	shapeDisplacementSensitivity () const
	Internally used accessor for getting the shape displacement sensitivity from the physics modules. More...

void	CreateParaviewDataCollection () const
	Create a paraview data collection for the physics package if requested.

void	UpdateParaviewDataCollection (const std::string &paraview_output_dir) const
	Update the paraview states, duals, parameters, and metadata (cycle, time) in preparation for output. More...

void	initializeBasePhysicsStates (int cycle, double time)
	Protected, non-virtual method to reset physics states to zero. This does not reset design parameters or shape. More...

std::unordered_map< std::string, FiniteElementState >	getCheckpointedStates (int cycle)
	Accessor for getting all of the primal solutions from the physics modules at a given checkpointed cycle index. More...

Static Protected Attributes inherited from smith::BasePhysics
static constexpr int	FLOAT_PRECISION_ = 8
	Number of significant figures to output for floating-point.

Detailed Description

template<int order, int dim, typename... parameter_space>
class smith::Thermomechanics< order, dim, parameter_space >

The operator-split thermal-structural solver.

Uses Functional to compute action of operators

Definition at line 33 of file thermomechanics.hpp.

Constructor & Destructor Documentation

◆ Thermomechanics() [1/4]

template<int order, int dim, typename... parameter_space>

smith::Thermomechanics< order, dim, parameter_space >::Thermomechanics	(	const NonlinearSolverOptions	thermal_nonlin_opts,
		const LinearSolverOptions	thermal_lin_opts,
		TimesteppingOptions	thermal_timestepping,
		const NonlinearSolverOptions	solid_nonlin_opts,
		const LinearSolverOptions	solid_lin_opts,
		TimesteppingOptions	solid_timestepping,
		const std::string &	physics_name,
		std::shared_ptr< smith::Mesh >	smith_mesh,
		int	cycle = `0`,
		double	time = `0.0`
	)

inline

Construct a new coupled Thermal-SolidMechanics object.

Parameters

thermal_nonlin_opts	The options for solving the nonlinear heat conduction residual equations
thermal_lin_opts	The options for solving the linearized Jacobian heat transfer equations
thermal_timestepping	The timestepping options for the heat transfer operator
solid_nonlin_opts	The options for solving the nonlinear solid mechanics residual equations
solid_lin_opts	The options for solving the linearized Jacobian solid mechanics equations
solid_timestepping	The timestepping options for the solid solver
physics_name	A name for the physics module instance
smith_mesh	Smith mesh for physics
cycle	The simulation cycle (i.e. timestep iteration) to intialize the physics module to
time	The simulation time to initialize the physics module to

Definition at line 49 of file thermomechanics.hpp.

◆ Thermomechanics() [2/4]

template<int order, int dim, typename... parameter_space>

smith::Thermomechanics< order, dim, parameter_space >::Thermomechanics	(	std::unique_ptr< EquationSolver >	thermal_solver,
		TimesteppingOptions	thermal_timestepping,
		std::unique_ptr< EquationSolver >	solid_solver,
		TimesteppingOptions	solid_timestepping,
		const std::string &	physics_name,
		std::shared_ptr< smith::Mesh >	smith_mesh,
		int	cycle = `0`,
		double	time = `0.0`
	)

inline

Construct a new coupled Thermal-SolidMechanics object.

Parameters

thermal_solver	The nonlinear equation solver for the heat conduction equations
thermal_timestepping	The timestepping options for the thermal solver
solid_solver	The nonlinear equation solver for the solid mechanics equations
solid_timestepping	The timestepping options for the solid solver
physics_name	A name for the physics module instance
smith_mesh	Smith mesh for physics
cycle	The simulation cycle (i.e. timestep iteration) to intialize the physics module to
time	The simulation time to initialize the physics module to

Definition at line 73 of file thermomechanics.hpp.

◆ Thermomechanics() [3/4]

template<int order, int dim, typename... parameter_space>

smith::Thermomechanics< order, dim, parameter_space >::Thermomechanics	(	const HeatTransferInputOptions &	thermal_options,
		const SolidMechanicsInputOptions &	solid_options,
		const std::string &	physics_name,
		std::string	mesh_tag,
		int	cycle = `0`,
		double	time = `0.0`
	)

inline

Construct a new Thermal-SolidMechanics Functional object from input file options.

Parameters

[in]	thermal_options	The thermal physics module input file option struct
[in]	solid_options	The solid physics module input file option struct
[in]	physics_name	A name for the physics module instance
[in]	mesh_tag	The tag for the mesh in the StateManager to construct the physics module on
[in]	cycle	The simulation cycle (i.e. timestep iteration) to intialize the physics module to
[in]	time	The simulation time to initialize the physics module to

Definition at line 101 of file thermomechanics.hpp.

◆ Thermomechanics() [4/4]

template<int order, int dim, typename... parameter_space>

smith::Thermomechanics< order, dim, parameter_space >::Thermomechanics	(	const ThermomechanicsInputOptions &	options,
		const std::string &	physics_name,
		std::string	mesh_tag,
		int	cycle = `0`,
		double	time = `0.0`
	)

inline

Construct a new Thermal-SolidMechanics Functional object from input file options.

Parameters

[in]	options	The thermal solid physics module input file option struct
[in]	physics_name	A name for the physics module instance
[in]	mesh_tag	The tag for the mesh in the StateManager to construct the physics module on
[in]	cycle	The simulation cycle (i.e. timestep iteration) to intialize the physics module to
[in]	time	The simulation time to initialize the physics module to

Definition at line 119 of file thermomechanics.hpp.

Member Function Documentation

◆ addBodyForce()

template<int order, int dim, typename... parameter_space>

template<typename BodyForceType >

void smith::Thermomechanics< order, dim, parameter_space >::addBodyForce ( BodyForceType body_force_function )

inline

Set the body forcefunction.

Template Parameters

BodyForceType The type of the body force load

Precondition

body_force_function must be a object that can be called with the following arguments:

tensor<T,dim> x the spatial coordinates for the quadrature point
double t the time (note: time will be handled differently in the future)
tuple{value, derivative}, a variadic list of tuples (each with a values and derivative), one tuple for each of the trial spaces specified in the DependsOn<...> argument.

Note: The actual types of these arguments passed will be double, tensor<double, ... > or tuples thereof when doing direct evaluation. When differentiating with respect to one of the inputs, its stored values will change to dual numbers rather than double. (e.g. tensor<double,3> becomes tensor<dual<...>, 3>)

Definition at line 510 of file thermomechanics.hpp.

◆ addHeatSource()

template<int order, int dim, typename... parameter_space>

template<typename HeatSourceType >

void smith::Thermomechanics< order, dim, parameter_space >::addHeatSource ( HeatSourceType source_function )

inline

Set the thermal source function.

Template Parameters

HeatSourceType The type of the source function

Parameters

source_function A source function for a prescribed thermal load

Precondition

source_function must be a object that can be called with the following arguments:

tensor<T,dim> x the spatial coordinates for the quadrature point
double t the time (note: time will be handled differently in the future)
T temperature the current temperature at the quadrature point
tensor<T,dim> the spatial gradient of the temperature at the quadrature point
tuple{value, derivative}, a variadic list of tuples (each with a values and derivative), one tuple for each of the trial spaces specified in the DependsOn<...> argument.

Note: The actual types of these arguments passed will be double, tensor<double, ... > or tuples thereof when doing direct evaluation. When differentiating with respect to one of the inputs, its stored values will change to dual numbers rather than double. (e.g. tensor<double,3> becomes tensor<dual<...>, 3>)

Definition at line 535 of file thermomechanics.hpp.

◆ adjoint()

template<int order, int dim, typename... parameter_space>

const FiniteElementState& smith::Thermomechanics< order, dim, parameter_space >::adjoint ( const std::string & state_name ) const

inlineoverridevirtual

Accessor for getting named finite element adjoint fields from the physics modules.

Parameters

state_name The name of the Finite Element State adjoint field to retrieve

Returns: The named Finite Element State adjoint

Implements smith::BasePhysics.

Definition at line 220 of file thermomechanics.hpp.

◆ advanceTimestep()

template<int order, int dim, typename... parameter_space>

void smith::Thermomechanics< order, dim, parameter_space >::advanceTimestep ( double dt )

inlineoverridevirtual

Advance the timestep.

Parameters

dt	The increment of simulation time to advance the underlying thermomechanical problem

Implements smith::BasePhysics.

Definition at line 238 of file thermomechanics.hpp.

◆ completeSetup()

template<int order, int dim, typename... parameter_space>

void smith::Thermomechanics< order, dim, parameter_space >::completeSetup ( )

inlineoverridevirtual

Complete the initialization and allocation of the data structures.

Note: This must be called before AdvanceTimestep().

Implements smith::BasePhysics.

Definition at line 136 of file thermomechanics.hpp.

◆ createQuadratureDataBuffer()

template<int order, int dim, typename... parameter_space>

template<typename T >

std::shared_ptr<QuadratureData<T> > smith::Thermomechanics< order, dim, parameter_space >::createQuadratureDataBuffer ( T initial_state )

inline

Create a shared ptr to a quadrature data buffer for the given material type.

Template Parameters

T	the type to be created at each quadrature point

Parameters

initial_state the value to be broadcast to each quadrature point

Returns: std::shared_ptr< QuadratureData<T> >

Definition at line 258 of file thermomechanics.hpp.

◆ displacement()

template<int order, int dim, typename... parameter_space>

const smith::FiniteElementState& smith::Thermomechanics< order, dim, parameter_space >::displacement ( ) const

inline

Get the displacement state.

Returns: A reference to the current displacement finite element state

Definition at line 545 of file thermomechanics.hpp.

◆ resetStates()

template<int order, int dim, typename... parameter_space>

void smith::Thermomechanics< order, dim, parameter_space >::resetStates	(	int	cycle = `0`,
		double	time = `0.0`
	)

inlineoverridevirtual

Method to reset physics states to zero. This does not reset design parameters or shape.

Parameters

[in]	cycle	The simulation cycle (i.e. timestep iteration) to intialize the physics module to
[in]	time	The simulation time to initialize the physics module to

Implements smith::BasePhysics.

Definition at line 148 of file thermomechanics.hpp.

◆ setDisplacement()

template<int order, int dim, typename... parameter_space>

template<typename Callable >

void smith::Thermomechanics< order, dim, parameter_space >::setDisplacement ( Callable displacement )

inline

Set the underlying finite element state to a prescribed displacement.

Parameters

displacement The function describing the displacement field

Definition at line 479 of file thermomechanics.hpp.

◆ setDisplacementBCs()

template<int order, int dim, typename... parameter_space>

template<typename AppliedDisplacementFunction >

void smith::Thermomechanics< order, dim, parameter_space >::setDisplacementBCs	(	AppliedDisplacementFunction	applied_displacement,
		Domain &	domain,
		Components	components = `Component::ALL`
	)

inline

Set essential displacement boundary conditions on selected components.

Parameters

[in]	applied_displacement	Function specifying the applied displacement vector.
[in]	domain	Domain over which to apply the boundary condition.
[in]	components	(optional) (optional) Indicator of vector components to be constrained. If argument is omitted, the default is to constrain all components.

Note: This method must be called prior to completeSetup()

The signature of the applied_displacement callable is: tensor<double, dim> applied_displacement(tensor<double, dim> X, double t) Parameters: X - coordinates of node t - time Returns: u, vector of applied displacements

Definition at line 427 of file thermomechanics.hpp.

◆ setFixedBCs()

template<int order, int dim, typename... parameter_space>

void smith::Thermomechanics< order, dim, parameter_space >::setFixedBCs	(	Domain &	domain,
		Components	components = `Component::ALL`
	)

inline

Shortcut to set selected components of displacements to zero for all time.

Parameters

[in]	domain	Domain to apply the homogeneous boundary condition to
[in]	components	(optional) Indicator of vector components to be constrained. If argument is omitted, the default is to constrain all components.

Note: This method must be called prior to completeSetup()

Definition at line 442 of file thermomechanics.hpp.

◆ setHeatFluxBCs()

template<int order, int dim, typename... parameter_space>

template<typename FluxType >

void smith::Thermomechanics< order, dim, parameter_space >::setHeatFluxBCs ( FluxType flux_function )

inline

Set the thermal flux boundary condition.

Template Parameters

FluxType The type of the thermal flux object

Parameters

flux_function A function describing the flux applied to a boundary

Precondition

FluxType must be a object that can be called with the following arguments:

tensor<T,dim> x the spatial coordinates for the quadrature point
tensor<T,dim> n the outward-facing unit normal for the quadrature point
double t the time (note: time will be handled differently in the future)
T temperature the current temperature at the quadrature point

tuple{value, derivative}, a variadic list of tuples (each with a values and derivative), one tuple for each of the trial spaces specified in the DependsOn<...> argument.

Note: The actual types of these arguments passed will be double, tensor<double, ... > or tuples thereof when doing direct evaluation. When differentiating with respect to one of the inputs, its stored values will change to dual numbers rather than double. (e.g. tensor<double,3> becomes tensor<dual<...>, 3>); : until mfem::GetFaceGeometricFactors implements their JACOBIANS option, (or we implement a replacement kernel ourselves) we are not able to compute shape sensitivities for boundary integrals.

Definition at line 468 of file thermomechanics.hpp.

◆ setMaterial()

template<int order, int dim, typename... parameter_space>

template<int... active_parameters, typename MaterialType , typename StateType >

void smith::Thermomechanics< order, dim, parameter_space >::setMaterial	(	DependsOn< active_parameters... >	,
		const MaterialType &	material,
		Domain &	domain,
		std::shared_ptr< QuadratureData< StateType >>	qdata
	)

inline

Set the thermomechanical material response.

Template Parameters

MaterialType	The thermomechanical material type
StateType	The type that contains the internal variables for MaterialType

Parameters

material	A material that provides a function to evaluate stress, heat flux, density, and heat capacity
domain	which elements in the mesh are described by the specified material
qdata	the buffer of material internal variables at each quadrature point

Precondition

material must be a object that can be called with the following arguments:

MaterialType::State & state an mutable reference to the internal variables for this quadrature point
tensor<T,dim,dim> du_dx the displacement gradient at this quadrature point
T temperature the current temperature at the quadrature point
tensor<T,dim> the spatial gradient of the temperature at the quadrature point
tuple{value, derivative}, a tuple of values and derivatives for each parameter field specified in the DependsOn<...> argument.

Note: The actual types of these arguments passed will be double, tensor<double, ... > or tuples thereof when doing direct evaluation. When differentiating with respect to one of the inputs, its stored values will change to dual numbers rather than double. (e.g. tensor<double,3> becomes tensor<dual<...>, 3>)

Precondition: MaterialType must return a smith::tuple of Cauchy stress, volumetric heat capacity, internal heat source, and thermal flux when operator() is called with the arguments listed above.

Definition at line 376 of file thermomechanics.hpp.

◆ setState()

template<int order, int dim, typename... parameter_space>

void smith::Thermomechanics< order, dim, parameter_space >::setState	(	const std::string &	state_name,
		const FiniteElementState &	state
	)

inlineoverridevirtual

Set the primal solution field (displacement, velocity, temperature) for the underlying thermomechanics solver.

Parameters

state_name	The name of the field to initialize ("displacement", or "velocity")
state	The finite element state vector containing the values for either the displacement or velocity fields

It is expected that state has the same underlying finite element space and mesh as the selected primal solution field.

Implements smith::BasePhysics.

Definition at line 186 of file thermomechanics.hpp.

◆ setTemperature()

template<int order, int dim, typename... parameter_space>

void smith::Thermomechanics< order, dim, parameter_space >::setTemperature ( std::function< double(const mfem::Vector &x, double t)> temperature )

inline

Set the underlying finite element state to a prescribed temperature.

Parameters

temperature The function describing the temperature field

Definition at line 489 of file thermomechanics.hpp.

◆ setTemperatureBCs()

template<int order, int dim, typename... parameter_space>

void smith::Thermomechanics< order, dim, parameter_space >::setTemperatureBCs	(	const std::set< int > &	temperature_attributes,
		std::function< double(const mfem::Vector &x, double t)>	prescribed_value
	)

inline

Set essential temperature boundary conditions (strongly enforced)

Parameters

[in]	temperature_attributes	The boundary attributes on which to enforce a temperature
[in]	prescribed_value	The prescribed boundary temperature function

Definition at line 402 of file thermomechanics.hpp.

◆ state()

template<int order, int dim, typename... parameter_space>

const FiniteElementState& smith::Thermomechanics< order, dim, parameter_space >::state ( const std::string & state_name ) const

inlineoverridevirtual

Accessor for getting named finite element state primal fields from the physics modules.

Parameters

state_name The name of the Finite Element State to retrieve

Returns: The named Finite Element State

Implements smith::BasePhysics.

Definition at line 161 of file thermomechanics.hpp.

◆ stateNames()

template<int order, int dim, typename... parameter_space>

virtual std::vector<std::string> smith::Thermomechanics< order, dim, parameter_space >::stateNames ( ) const

inlineoverridevirtual

Get a vector of the finite element state solution variable names.

Returns: The solution variable names

Implements smith::BasePhysics.

Definition at line 209 of file thermomechanics.hpp.

◆ temperature()

template<int order, int dim, typename... parameter_space>

const smith::FiniteElementState& smith::Thermomechanics< order, dim, parameter_space >::temperature ( ) const

inline

Get the temperature state.

Returns: A reference to the current temperature finite element state

Definition at line 552 of file thermomechanics.hpp.

The documentation for this class was generated from the following file:

src/smith/physics/thermomechanics.hpp

Classes

Public Member Functions

Protected Types

Protected Attributes

Additional Inherited Members

Detailed Description

template<int order, int dim, typename... parameter_space> class smith::Thermomechanics< order, dim, parameter_space >

Constructor & Destructor Documentation

◆ Thermomechanics() [1/4]

◆ Thermomechanics() [2/4]

◆ Thermomechanics() [3/4]

◆ Thermomechanics() [4/4]

Member Function Documentation

◆ addBodyForce()

◆ addHeatSource()

◆ adjoint()

◆ advanceTimestep()

◆ completeSetup()

◆ createQuadratureDataBuffer()

◆ displacement()

◆ resetStates()

◆ setDisplacement()

◆ setDisplacementBCs()

◆ setFixedBCs()

◆ setHeatFluxBCs()

◆ setMaterial()

◆ setState()

◆ setTemperature()

◆ setTemperatureBCs()

◆ state()

◆ stateNames()

◆ temperature()

template<int order, int dim, typename... parameter_space>
class smith::Thermomechanics< order, dim, parameter_space >
