Implementation of BasePhysics which uses FieldStates and gretl to track the computational graph, dynamically checkpoint, and back-propagate sensitivities. More...
#include <differentiable_physics.hpp>

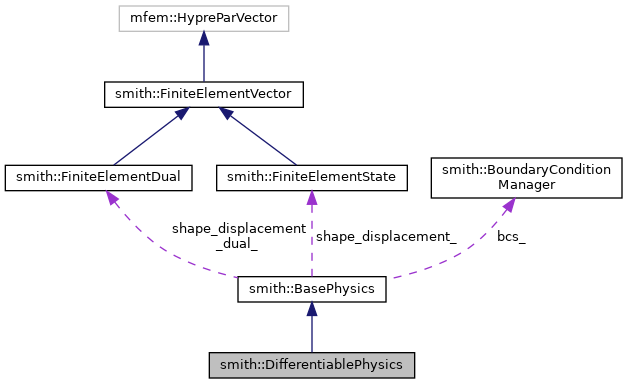

Collaboration diagram for smith::DifferentiablePhysics:
Public Member Functions | |
| DifferentiablePhysics (std::shared_ptr< Mesh > mesh, std::shared_ptr< gretl::DataStore > graph, const FieldState &shape_disp, const std::vector< FieldState > &states, const std::vector< FieldState > ¶ms, std::shared_ptr< StateAdvancer > advancer, std::string physics_name, const std::vector< std::string > &reaction_names={}) | |
| constructor | |
| ~DifferentiablePhysics () | |
| destructor | |
| void | resetStates (int cycle=0, double time=0.0) override |
| overload | |
| virtual void | resetAdjointStates () override |
| overload | |
| void | completeSetup () override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| std::vector< std::string > | stateNames () const override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| std::vector< std::string > | parameterNames () const override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| std::vector< std::string > | dualNames () const override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| const FiniteElementState & | state (const std::string &state_name) const override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| const FiniteElementDual & | dual (const std::string &dual_name) const override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| const FiniteElementState & | shapeDisplacement () const override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| const FiniteElementState & | parameter (std::size_t parameter_index) const override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| const FiniteElementState & | parameter (const std::string ¶meter_name) const override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| FiniteElementState | loadCheckpointedState (const std::string &state_name, int cycle) override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| void | setState (const std::string &state_name, const FiniteElementState &s) override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| void | setShapeDisplacement (const FiniteElementState &s) override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| void | setParameter (const size_t parameter_index, const FiniteElementState ¶meter_state) override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| void | setAdjointLoad (std::unordered_map< std::string, const smith::FiniteElementDual & > string_to_dual) override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| void | setDualAdjointBcs (std::unordered_map< std::string, const smith::FiniteElementState & > string_to_bc) override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| const FiniteElementState & | adjoint (const std::string &adjoint_name) const override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| virtual void | advanceTimestep (double dt) override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| void | reverseAdjointTimestep () override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| FiniteElementDual | computeTimestepSensitivity (size_t parameter_index) override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| const FiniteElementDual & | computeTimestepShapeSensitivity () override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| const std::unordered_map< std::string, const smith::FiniteElementDual & > | computeInitialConditionSensitivity () const override |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| std::vector< FieldState > | getInitialFieldStates () const |
| Get all the initial FieldStates. | |
| std::vector< FieldState > | getFieldStates () const |
| Get all the current FieldStates. | |
| std::vector< FieldState > | getFieldParams () const |
| Get all the parameter FieldStates. | |
| std::vector< FieldState > | getFieldStatesAndParamStates () const |
| Get all the FieldStates... states first, parameters next. | |
| FieldState | getShapeDispFieldState () const |
| Get the shape displacement FieldState. | |
| std::vector< ReactionState > | getReactionStates () const |
| Get the current reactionStates. | |
| std::shared_ptr< StateAdvancer > | getStateAdvancer () const |
| Get state advancer. | |
 Public Member Functions inherited from smith::BasePhysics | |
| BasePhysics (std::string physics_name, std::shared_ptr< smith::Mesh > mesh, int cycle=0, double time=0.0, bool checkpoint_to_disk=false) | |
| Empty constructor. More... | |
| BasePhysics (BasePhysics &&other)=default | |
| Construct a new Base Physics object (copy constructor) More... | |
| virtual double | time () const |
| Get the current forward-solution time. More... | |
| virtual int | cycle () const |
| Get the current forward-solution cycle iteration number. More... | |
| virtual double | maxTime () const |
| Get the maximum time reached by the forward solver. More... | |
| virtual double | minTime () const |
| Get the initial time used by the forward solver. More... | |
| virtual int | maxCycle () const |
| The maximum cycle (timestep iteration number) reached by the forward solver. More... | |
| virtual int | minCycle () const |
| Get the initial cycle (timestep iteration number) used by the forward solver. More... | |
| bool | isQuasistatic () const |
| Check if the physics is setup as quasistatic. More... | |
| virtual const std::vector< double > & | timesteps () const |
| Get a vector of the timestep sizes (i.e. \(\Delta t\)s) taken by the forward solver. More... | |
| virtual std::vector< std::string > | adjointNames () const |
| Get a vector of the finite element state adjoint solution names. More... | |
| virtual const FiniteElementState & | dualAdjoint (const std::string &dual_name) const |
| Accessor for getting named finite element state dual adjoint (reaction adjoint load) from the physics modules. More... | |
| virtual void | outputStateToDisk (std::optional< std::string > paraview_output_dir={}) const |
Output the current state of the PDE fields in Sidre format and optionally in Paraview format if paraview_output_dir is given. More... | |
| void | loadCheckpointedStatesFromDisk (int cycle) |
| load checkpointed states from disk into states array More... | |
| virtual FiniteElementDual | loadCheckpointedDual ([[maybe_unused]] const std::string &state_name, [[maybe_unused]] int cycle) |
| Accessor for getting a single named finite element dual solution from the physics modules at a given checkpointed cycle index. More... | |
| virtual double | getCheckpointedTimestep (int cycle) const |
| Get a timestep increment which has been previously checkpointed at the give cycle. More... | |
| virtual void | initializeSummary (axom::sidre::DataStore &datastore, const double t_final, const double dt) const |
| Initializes the Sidre structure for simulation summary data. More... | |
| virtual void | saveSummary (axom::sidre::DataStore &datastore, const double t) const |
| Saves the summary data to the Sidre Datastore. More... | |
| virtual | ~BasePhysics ()=default |
| Destroy the Base Solver object. | |
| const smith::Mesh & | mesh () const |
| Returns a reference to the mesh object. | |
| const mfem::ParMesh & | mfemParMesh () const |
| Returns a reference to the mfem ParMesh object. | |
| mfem::ParMesh & | mfemParMesh () |
| Returns a reference to the mfem ParMesh object. | |
| std::string | name () const |
| Return the name of the physics. | |
Additional Inherited Members | |
| Protected Member Functions inherited from smith::BasePhysics | |
| const FiniteElementDual & | shapeDisplacementSensitivity () const |
| Internally used accessor for getting the shape displacement sensitivity from the physics modules. More... | |
| void | CreateParaviewDataCollection () const |
| Create a paraview data collection for the physics package if requested. | |
| void | UpdateParaviewDataCollection (const std::string ¶view_output_dir) const |
| Update the paraview states, duals, parameters, and metadata (cycle, time) in preparation for output. More... | |
| void | initializeBasePhysicsStates (int cycle, double time) |
| Protected, non-virtual method to reset physics states to zero. This does not reset design parameters or shape. More... | |
| std::unordered_map< std::string, FiniteElementState > | getCheckpointedStates (int cycle) |
| Accessor for getting all of the primal solutions from the physics modules at a given checkpointed cycle index. More... | |
| Protected Attributes inherited from smith::BasePhysics | |
| std::string | name_ = {} |
| Name of the physics module. | |
| std::shared_ptr< smith::Mesh > | mesh_ |
| The primary mesh. | |
| MPI_Comm | comm_ |
| The MPI communicator. | |
| std::vector< const smith::FiniteElementState * > | states_ |
| List of finite element primal states associated with this physics module. | |
| std::vector< const smith::FiniteElementState * > | adjoints_ |
| List of finite element adjoint states associated with this physics module. | |
| std::vector< const smith::FiniteElementDual * > | duals_ |
| List of finite element duals associated with this physics module. | |
| std::vector< const smith::FiniteElementState * > | dual_adjoints_ |
| List of adjoint finite element duals associated with this physics module. | |
| std::vector< ParameterInfo > | parameters_ |
| A vector of the parameters associated with this physics module. | |
| std::unordered_map< std::string, std::vector< smith::FiniteElementState > > | checkpoint_states_ |
| A map containing optionally in-memory checkpointed primal states for transient adjoint solvers. | |
| std::unordered_map< std::string, smith::FiniteElementState > | cached_checkpoint_states_ |
| A container relating a checkpointed cycle and the associated finite element state fields. More... | |
| std::optional< int > | cached_checkpoint_cycle_ |
| An optional int for disk-based checkpointing containing the cycle number of the last retrieved checkpoint. | |
| bool | is_quasistatic_ = true |
| Whether the simulation is time-independent. | |
| double | time_ |
| Current time for the forward pass. | |
| double | dt_ |
| Current time step. | |
| double | max_time_ |
| The maximum time reached for the forward solver. | |
| double | min_time_ |
| The time the forward solver was initialized to. | |
| std::vector< double > | timesteps_ |
| A vector of the timestep sizes (i.e. \(\Delta t\)) taken by the forward solver. | |
| int | cycle_ |
| Current cycle (forward pass time iteration count) | |
| int | max_cycle_ |
| The maximum cycle (forward pass iteration count) reached by the forward solver. | |
| int | min_cycle_ |
| The cycle the forward solver was initialized to. | |
| double | ode_time_point_ |
| The value of time at which the ODE solver wants to evaluate the residual. | |
| int | mpi_rank_ |
| MPI rank. | |
| int | mpi_size_ |
| MPI size. | |
| std::unique_ptr< mfem::ParaViewDataCollection > | paraview_dc_ |
| DataCollection pointer for optional paraview output. | |
| std::unordered_map< std::string, std::unique_ptr< mfem::ParGridFunction > > | paraview_dual_grid_functions_ |
| A optional map of the dual names and duals in grid function form for paraview output. | |
| std::unique_ptr< mfem::ParGridFunction > | shape_sensitivity_grid_function_ |
| A optional view of the shape sensitivity in grid function form for paraview output. | |
| smith::FiniteElementState | shape_displacement_ |
| The shape displacement field. | |
| smith::FiniteElementDual | shape_displacement_dual_ |
| The shape displacement field sensitivity. | |
| BoundaryConditionManager | bcs_ |
| Boundary condition manager instance. | |
| bool | checkpoint_to_disk_ |
| A flag denoting whether to save the state to disk or memory as needed for dynamic adjoint solves. | |
| Static Protected Attributes inherited from smith::BasePhysics | |
| static constexpr int | FLOAT_PRECISION_ = 8 |
| Number of significant figures to output for floating-point. | |
Detailed Description
Implementation of BasePhysics which uses FieldStates and gretl to track the computational graph, dynamically checkpoint, and back-propagate sensitivities.
Definition at line 33 of file differentiable_physics.hpp.
The documentation for this class was generated from the following files:
- src/smith/differentiable_numerics/differentiable_physics.hpp
- src/smith/differentiable_numerics/differentiable_physics.cpp
