This file contains helper traits and enumerations for classifying finite elements. More...
#include "tuple.hpp"#include "tensor.hpp"#include "geometry.hpp"#include "polynomials.hpp"#include "detail/segment_H1.inl"#include "detail/segment_Hcurl.inl"#include "detail/segment_L2.inl"#include "detail/triangle_H1.inl"#include "detail/triangle_L2.inl"#include "detail/quadrilateral_H1.inl"#include "detail/quadrilateral_Hcurl.inl"#include "detail/quadrilateral_L2.inl"#include "detail/tetrahedron_H1.inl"#include "detail/tetrahedron_L2.inl"#include "detail/hexahedron_H1.inl"#include "detail/hexahedron_Hcurl.inl"#include "detail/hexahedron_L2.inl"#include "detail/qoi.inl"

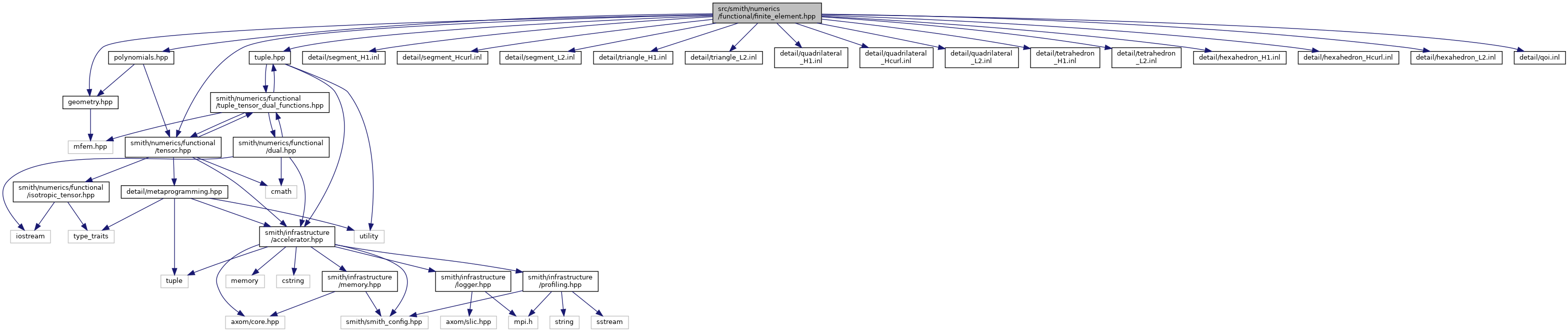

Include dependency graph for finite_element.hpp:

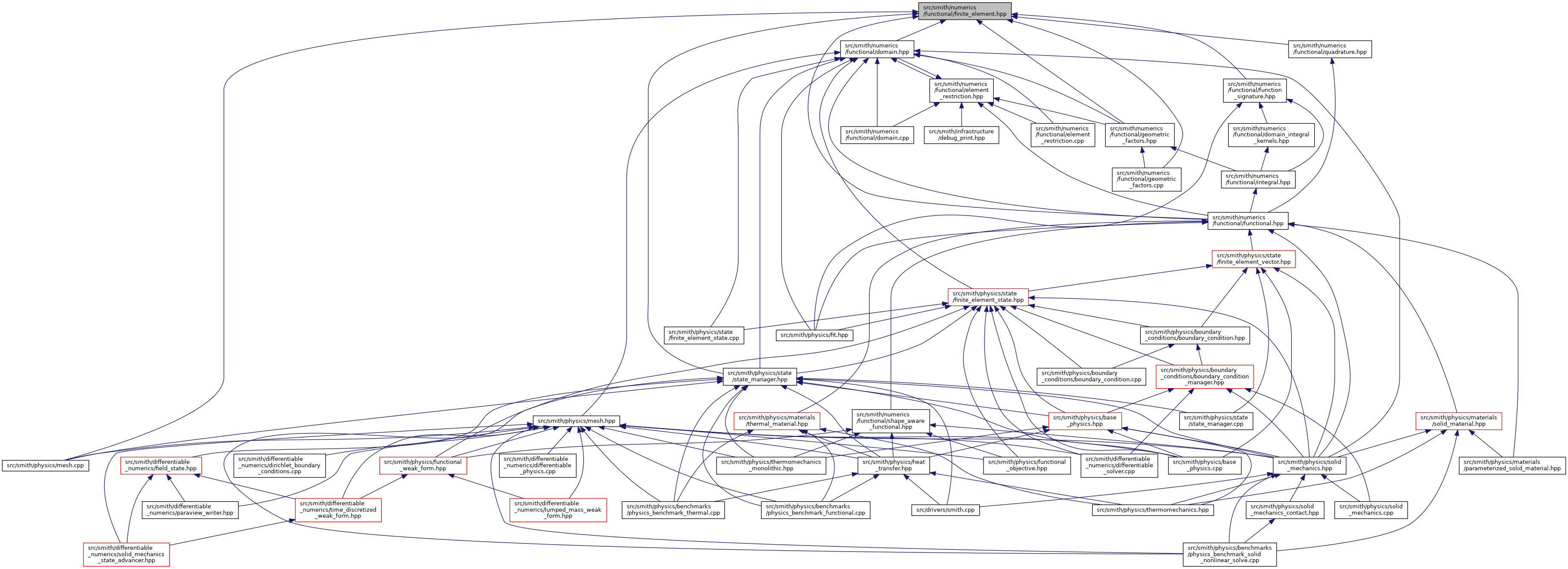

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | smith::TensorProductQuadratureRule< q > |
| a convenience class for generating information about tensor product integration rules from the underlying 1D rule. More... | |
| struct | smith::CompileTimeValue< val > |
| struct | smith::batched_jacobian< mfem::Geometry::CUBE, q > |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More... | |
| struct | smith::batched_jacobian< mfem::Geometry::SQUARE, q > |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More... | |
| struct | smith::batched_jacobian< mfem::Geometry::TRIANGLE, q > |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More... | |
| struct | smith::batched_jacobian< mfem::Geometry::TETRAHEDRON, q > |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More... | |
| struct | smith::batched_position< mfem::Geometry::CUBE, q > |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More... | |
| struct | smith::batched_position< mfem::Geometry::SQUARE, q > |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More... | |
| struct | smith::batched_position< mfem::Geometry::TRIANGLE, q > |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More... | |
| struct | smith::batched_position< mfem::Geometry::TETRAHEDRON, q > |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More... | |
| struct | smith::batched_position< mfem::Geometry::SEGMENT, q > |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More... | |
| struct | smith::H1< p, c > |
H1 elements of order p. More... | |
| struct | smith::Hcurl< p, c > |
H(curl) elements of order p. More... | |
| struct | smith::L2< p, c > |
Discontinuous elements of order p. More... | |
| struct | smith::QOI |
| "Quantity of Interest" elements (i.e. elements with a single shape function, 1) More... | |
| struct | smith::FunctionSpace |
| a small POD class for tracking function space metadata More... | |
Namespaces | |
| smith | |
| Accelerator functionality. | |
Enumerations | |
| enum class | smith::Family { QOI , H1 , HCURL , HDIV , L2 } |
| Element conformity. More... | |
Functions | |
| template<mfem::Geometry::Type g> | |
| constexpr SMITH_HOST_DEVICE int | smith::elements_per_block (int q) |
| this function returns information about how many elements should be processed by a single thread block in CUDA (note: the optimal values are hardware and problem specific, but these values are still significantly faster than naively allocating only 1 element / block) More... | |
| template<Family f, typename T , int q, int dim> | |
| SMITH_HOST_DEVICE void | smith::parent_to_physical (tensor< T, q > &qf_input, const tensor< double, dim, dim, q > &jacobians) |
| transform information in the parent space (i.e. values and derivatives w.r.t {xi, eta, zeta}) into the physical space (i.e. values and derivatives w.r.t. {x, y, z}) More... | |
| template<Family f, typename T , int q, int dim> | |
| SMITH_HOST_DEVICE void | smith::physical_to_parent (tensor< T, q > &qf_output, const tensor< double, dim, dim, q > &jacobians) |
| transform information in the physical space (i.e. sources and fluxes w.r.t {x, y, z}) back to the parent space (i.e. values and derivatives w.r.t. {xi, eta, zeta}). Note: this also multiplies by the outputs by the determinant of the quadrature point Jacobian. More... | |
Detailed Description
This file contains helper traits and enumerations for classifying finite elements.
Definition in file finite_element.hpp.
